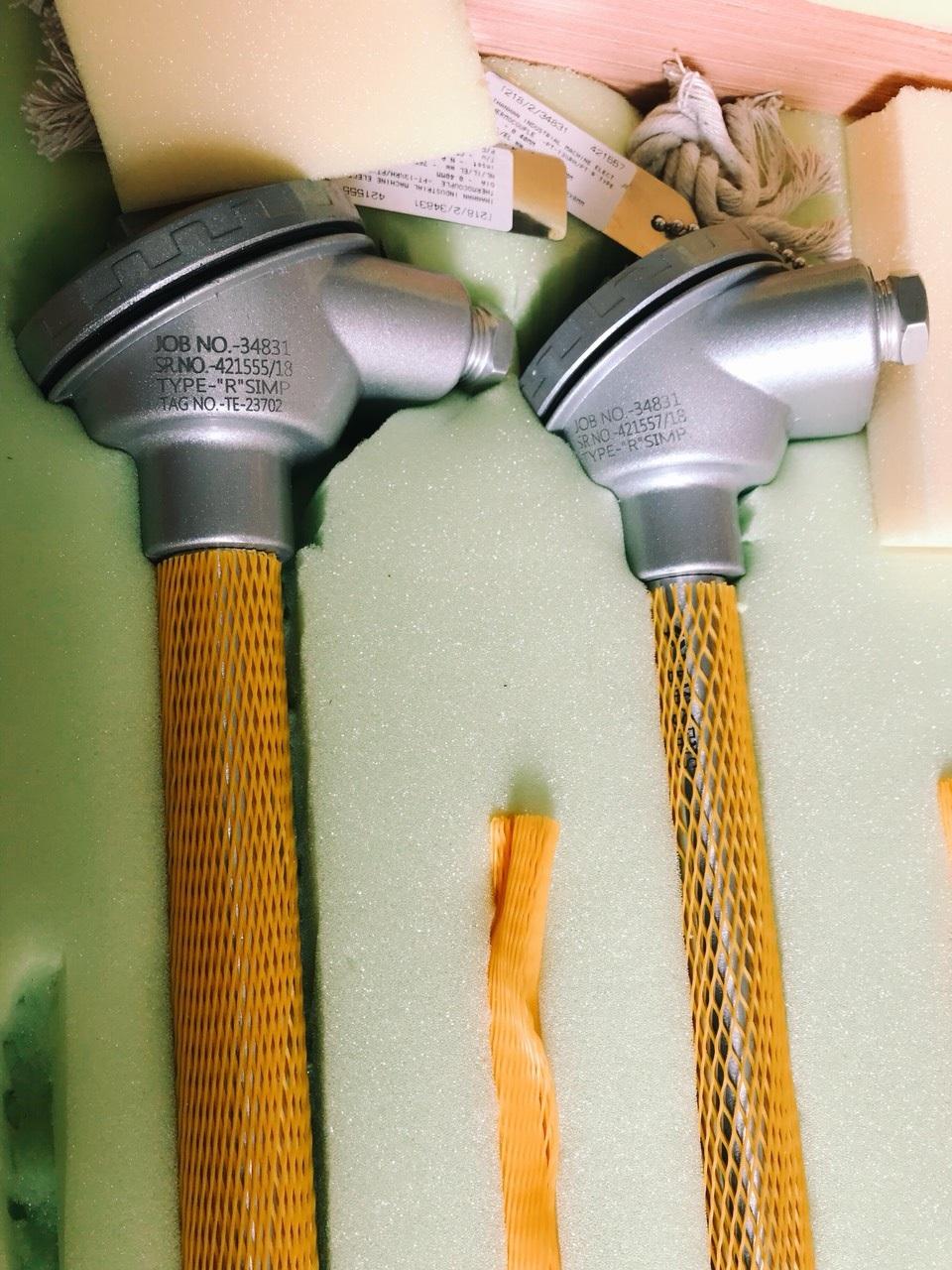

THERMOCOUPLE TE-23702

TEMPSENS MAKE "R" TYPE THERMOCOUPLE WITH CONNECTION
HEAD: DIE CAST ALU. IP-65, TERMINALS & CERAMIC BLOCK:
ELEMENT: PtRh13%-Pt "R" TYPE, SIMPLEX, UNGROUNDED,
STANDARD: CALI: ANSI MC 96.1,
INSULATION: CERAMIC KER-710 TUBE, 2 HOLES: 3.5MM
INNER TUBE: CERAMIC KER-710, ODXID: 6X4MM,
EXT. NIPPLE: SS-316, 3/4" SCH-80, 3/4" NPT(M), SS, 300MM LONG,
LENGTH BELOW HEAD: 765MM,
TAG NO.: TE-23702,
TEMPERATURE RANGE: 0 TO 1400 DEG. C, OTHER DETAIL AS PER OUR DRAWING NO.: 15-11215.,
